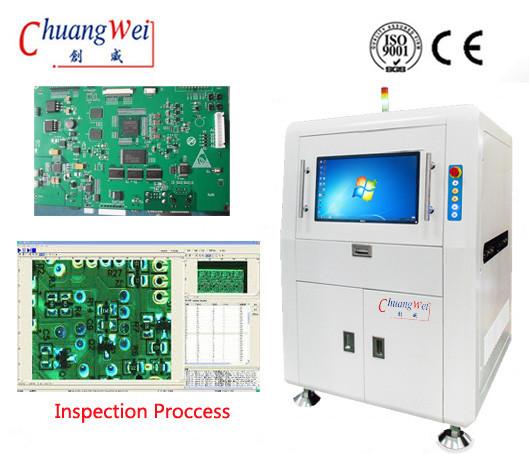

| Category | Item | Specification |
Recognition System | Inspection | Using multiple algorithm synthetically such as WIDM, Color Image contrast technology, Color extracting technology, similarity, two-value handling technology, OCR/OCV, Solder ball inspection, PTH analysis and so on. |
| Camera | Dual Distal and high speed color CCD camera Resolution: 20 um(15um,12um,10um for option) |
| Lamp-house | Dual Ring tower structure, high intensity RGB flash lamp-house |
| Image Processing Speed | 0201 Chip | ＜9ms |
| Per-image Time | ＜150ms |
| Inspection Item | Paste Printing Defects | Misaligned, overflow, insufficient, pasting open, stain |
| Components Defects | Missing, shift, skewed, tombstone,billboard, overturned,reversed polarity, wrong, damage |
| Solder Defects | Overflow, insufficient, short solder, stain |
| Wave Solder Inspect | Overflow, insufficient, short solder, excess solder, solder void |

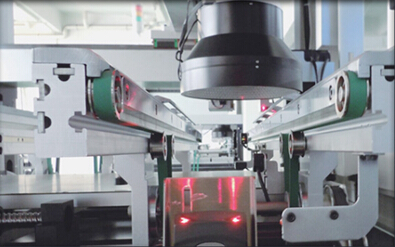

Mechanism System | PCB conveyor | Dual conveyor & dual visual control system. Two different PCB move into the conveyor and inspect simultaneously. Automatic PCB loading and unloading, Adjustable clearance, Conforming SMEMA standard. Conveyor height: 900±20mm |
| PCB sizes | The PCB size in two conveyors: 50×50mm - 500×260mm, can make bigger size according to clients’ demands |
| PCB Thickness | 0.3mm – 3.0mm |
| PCB Warp tolerance | ＜2mm |
| Component clearance | <30mm |
| X,Y platform & Z axis | Driver | AC server |
| Orientation | ＜10um |
| Moving Speed | 500mm/s |
| Operation System | Microsoft Windows 7*64 |
| Controlling & Recognizing | Characteristics | Dual conveyor dual inspection system, can seamless joint with the high-speed dual production line. Set template images real time, count data and error gate value automatically. Multiple marks correction, input CAD date locate the templates automatically, the operator can combine algorithms according to the requirement. |
| Operation | Graphic programming, Chinese, English |
| Offline Programming | Offline programming and Offline debugging |
| Network | NG adaptable, check and correct PCBA defects at repair station |
| Controller | Computer | CPU:Intel dual-core, Memory:16G, Hard disk:1TB |
| Display | 23 inch TFT |
| Multi Machine Control | The operator can control multi same machines in the control terminal |
Others | Machine Dimensions(L*W*H) | 153cm×138cm×160cm |
| Weight |
1000kg |
| Power Supply | AC220V, 10%, single phase 5A 50/60HZ, power consumption 1200W with UPS inside |
| Working Environment | Temperature10-40℃, humidity 30-80% RH |
| Air Supply | 4-6 bar |
